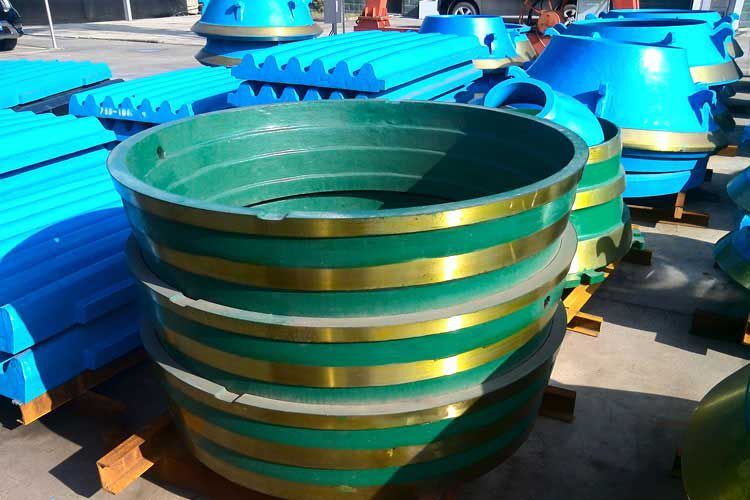

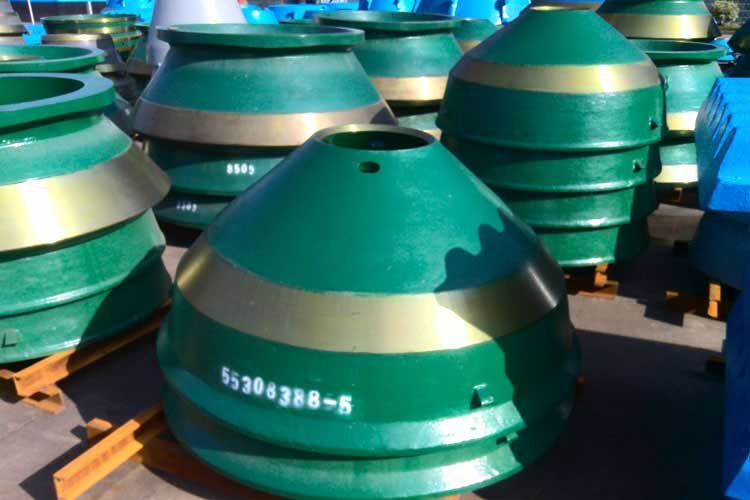

Bowl Liner & Mantle son las piezas principalmente resistentes al desgaste para la trituradora de cono metso GP11F.WHITE LAI ofrece Metso® Bowl Liner & Mantle, la alternativa perfecta a los accesorios originales de Metso.
WHITE LAI Bowl Liner & Mantle está fabricado con acero con alto contenido de manganeso, por lo tanto, tiene una vida útil entre un 50 y un 100 % mayor que los fabricados con acero tradicional con alto contenido de manganeso. Las técnicas especiales de procesamiento aseguran que nuestro Bowl Liner & Mantle tenga un rendimiento líder:
1) Al utilizar la tecnología de endurecimiento por procesamiento en frío, se mejora la dureza.
2) Tecnología de endurecimiento por agua para evitar que el rendimiento sea deficiente durante el proceso de cambio de fase natural.
| Número de parte | Descripción | Tipo | Peso (KG) |
|---|
| 171644 | LOW FRAME GP11F/GP11M | GP11F | 3,400.000 |
|---|
| 171650 | FRAME UPR GP11F | GP11F | 1,950.000 |
|---|
| 171652 | CASE GP11F/GP11M | GP11F | 132.000 |
|---|
| 171691 | CNTRWGHT GP11F, GP11M | GP11F | 65.000 |
|---|
| 203943 | ADJSTNG UNIT GP11F | GP11F | 18.500 |
|---|
| 203947 | AIR COOLER INST GP100/S | GP11F | 35.000 |
|---|
| 285332 | ADJSTNG CYL GP11F/GP11M | GP11F | 540.000 |
|---|
| 285340 | CNTRSHFT ASSY GP11F/GP11M | GP11F | 207.000 |
|---|
| 285342 | NUT TR290X12-8H RIGHT HANDED GP11F | GP11F | 50.480 |
|---|
| 285344 | ECCENTRIC BUSHING E25 | GP11F | 59.300 |
|---|
| 285385 | ECCENTRIC BUSHING E30 G411 | GP11F | 65.000 |
|---|
| 285388 | PROTECCIÓN CONCAVA GP11F EF&F (G411&811 | GP11F | 130.720 |
|---|
| 285417 | ECCENTRIC BUSHING E20 | GP11F | 59.180 |
|---|
| 285596 | PRSSR SEALING INST | GP11F | 45.000 |
|---|
| 312150 | PROTECTION BUSHING G1810 G2011 G2211 | GP11F | 29.000 |
|---|
| 312446 | CURVE G11 | GP11F | 2.500 |
|---|
| 386874 | RESTRICTOR VALVE G-SERIES | GP11F | 8.000 |
|---|
| 418373 | STRAINER G-SERIES | GP11F | 1.600 |
|---|
| 418650 | PUSHING PLATE G1000 | GP11F | 0.530 |
|---|
| 418751 | FRAME EN-AW 6082 T6 / ALSIMG T6 | GP11F | 0.360 |
|---|
| 909657 | ARROW G-CONES | GP11F | 0.050 |
|---|
| 912546 | PRSSR ACCU INST 20 L | GP11F | 83.000 |
|---|
| 916231 | MAIN SHAFT ASSY GP11F/GP11M | GP11F | 1,989.000 |
|---|
| 919743 | PROTECTION PIPE GP11F/11M | GP11F | 1.000 |
|---|
| 919799 | ADJSTNG CYL GP11F/GP11M | GP11F | 1,040.000 |
|---|
| 928513 | TRANSPORT RACK KULJETUSALUSTA G11 FINE | GP11F | 200.000 |
|---|
| 933911 | SUB-FRAME ASSEMBLY G11FINE/G11MFINE | GP11F | 762.000 |
|---|
| 935308 | SUPPORT HOLDER | GP11F | 3.000 |
|---|
| 941534 | AJUSTE DE EMPUJE G11FINE Y G11MFINE | GP11F | 47.500 |
|---|
| 946561 | CYL BUSHING GP11F / GP11M | GP11F | 37.200 |
|---|
| 948468 | DIRECTIONAL VALVE | GP11F | 0.650 |
|---|
| 950034 | MOTOR SUPPORT ASSY GP11F/11M | GP11F | 502.000 |
|---|
| 406203455000 | TUBE NIPPLE 765801(PUS20R) | GP11F | 0.000 |
|---|
| 701402950000 | PIPE EN10305-1-18X1.5-E235+N | GP11F | 0.610 |
|---|
| 703402030000 | SEALING COMPOUND SILICONE TUBE WHITE 31 | GP11F | 0.350 |
|---|
| 704007470000 | WASHER LOCK DIN127-A6-FST-A3A | GP11F | 0.001 |
|---|
| 704103365000 | CAP SCRW HEXSCKTHD ISO4762-M6X20-8.8-A3A | GP11F | 0.007 |
|---|
| 704103769000 | CAP SCRW HEXSCKTHD ISO4762-M16X220-8.8 | GP11F | 0.380 |
|---|
| 704405692740 | PARALLEL KEY DIN6885-A14X9X315 | GP11F | 0.300 |
|---|
| 704405692915 | PARALLEL KEY DIN6885-A18X11X40 | GP11F | 0.060 |
|---|
| 704405692943 | PARALLEL KEY DIN6885-D18X11X63 | GP11F | 0.100 |
| 704405693269 | PARALLEL KEY DIN6885-AB22X14X100 | GP11F | 0.240 |
| 704405693285 | PARALLEL KEY DIN6885-AB22X14X125 | GP11F | 0.400 |
| 704405729100 | CAP SCRW HEXSCKTHD DIN6912-M8X25-8.8 | GP11F | 0.010 |
| 704406000000 | SCREW PLATE SCREW DIN7513-A M6X12-ST | GP11F | 0.010 |
| 704406270000 | SEAL RING DIN7603-A17X21-CU | GP11F | 0.002 |
| 704406540000 | SEAL DIN7603-A26X31-CU | GP11F | 0.010 |
| 704406850000 | SEAL RING DIN7603-A60X68-CU | GP11F | 0.010 |
| 704500220000 | WASHER SPRING DIN7980-10-FST-A3A | GP11F | 0.002 |
| 704500231000 | WASHER SPRING DIN7980-16-A3A | GP11F | 0.010 |
| 704501390000 | SCREW HEX SCKT CSH ISO10642-M12X35-8.8 | GP11F | 0.030 |
| 704501650000 | GREASE NIPPLE DIN71412-AM8X1 | GP11F | 0.010 |
| 704501660000 | GREASE NIPPLE DIN71412-AM10X1 | GP11F | 0.010 |
| 704505065500 | HYDR HOSE LOS 5-1 AC 10X630 | GP11F | 0.140 |
| 704505066300 | HOSE LOS5-1AC10X870 | GP11F | 0.190 |
| 704505139000 | HOSE LOS5-1AC16X800 | GP11F | 0.270 |
| 704505166745 | HOSE LOS5-1AC20X 900 | GP11F | 0.400 |
| 704505169250 | HOSE LOS5-1AA25X1300 | GP11F | 0.820 |
| 704505169394 | HOSE LOS5-1AA25X5000 | GP11F | 5.200 |
| 704505169400 | HOSE LOS5-1AC25X600 | GP11F | 0.500 |
| 704505169665 | HOSE LOS5-1AC25X1550 | GP11F | 0.000 |
| 704508391500 | HOSE LOS5-4KP31,5X2200 | GP11F | 7.600 |
| 704512121160 | CNNCTN SPINDLE LOS5-1U16 | GP11F | 0.180 |
| 704512152160 | CNNCTN BUSHING LOS5-2-16 | GP11F | 0.060 |
| 704518050200 | SPLIT FLANGE PAIR LOS5-31,5 | GP11F | 0.270 |
| 704518200300 | O-RING JISB2401-P38-37.70X3.50-NBR70 | GP11F | 0.050 |
| 704602303400 | PLUG PLASTIC NO 30 | GP11F | 0.010 |
| 704602304000 | PLUG PLASTIC NA0211A | GP11F | 0.010 |
| 704602305000 | PLUG PLASTIC NA0255A | GP11F | 0.010 |
| 704602305800 | PLUG PLASTIC NO 45, NA0306A | GP11F | 0.002 |
| 704602307000 | PLUG PLASTIC NA0320A | GP11F | 0.010 |
| 705202730000 | BALL VALVE LVI3710012 (LEK4R1) | GP11F | 0.500 |
| 705303060000 | ROLLER BRNG 30318 J2 | GP11F | 5.650 |
| 705303976000 | ROCKER BEARING GE 260 ES/C3D7 (NO SEAL. | GP11F | 51.500 |
| 705501260555 | V-BELT SET ISO4184-8XSPC 2500 | GP11F | 6.800 |
| 705501260615 | V-BELT SET ISO4184-8XSPC 3150 | GP11F | 8.660 |
| 705501260950 | V-BELT SET ISO4184-8XSPC 3550 | GP11F | 12.200 |
| 705600380000 | WRENCH HIT BOX DIN7444-46 | GP11F | 1.030 |
| 705600441000 | GREASE GUN DIN1283-H 500 | GP11F | 3.000 |
| 705600461000 | MOUTH PIECE DIN1283-C1 | GP11F | 0.030 |
| 705640588701 | TOOL KIT GP11F/GP11M ER.405887-A | GP11F | 25.000 |
| 706302732500 | CELL IE 2925 | GP11F | 10.000 |
| 706302735000 | FAN 500/8-8/45/PPG/3HL/19/6/B | GP11F | 0.960 |
| 707200054710 | SQUIRR CAGE MOTOR 0.75KW-230/400V-50HZ | GP11F | 11.700 |
| 707301405225 | FUSE 1904529903 (5A) | GP11F | 0.010 |
| 707402076112 | MTR PROTECTIVE CIRCUIT BREAKER GV2-ME07 | + GP11F | 0.300 |
| 707402076113 | MTR PROTECTIVE CIRCUIT BREAKER GV2-ME06 | + GP11F | 0.300 |
| 707402076120 | MTR PROTECTIVE CIRCUIT BREAKER GV2-ME10 | GP11F | 0.300 |
| 707402076150 | MTR PROTECTIVE CIRCUIT BREAKER GV2-ME14 | + GP11F | 0.200 |
| 707402076501 | COIL SW LC1D09BD | GP11F | 0.550 |
| 707402076502 | CONTACTOR LC1D12BD | GP11F | 0.550 |
|---|
| 814317169500 | MANTLE EF/F | GP11F | 494.730 |
| 814317169600 | CONCAVE EF | GP11F | 389.070 |
| 814317171900 | CONCAVE F | GP11F | 417.500 |
| 814317177700 | CONCAVE M | GP11F | 809.860 |
| 814320044100 | MANTLE M/C | GP11F | 496.880 |
| 814328546000 | CONCAVE C | GP11F | 752.490 |
| 814390827200 | MANTLE M/C OS | GP11F | 576.000 |
| 849620315500 | PROTECTION PLATE GP11F/GP11M | GP11F | 70.000 |
| 849620315600 | PROTECTION PLATE GP11F/GP11M | GP11F | 44.000 |
| 949617138300 | SETTING PISTON GP11F/GP11M | GP11F | 205.000 |
| 949617139100 | HEAD | GP11F | 906.590 |
| 949620307400 | SLIDE RING GP11F/GP11M | GP11F | 52.300 |
| 949620310700 | SLIP RING GP11F/GP11M | GP11F | 75.000 |
| 949620310900 | FRAME BEARING BUSHING G10-SERIE 203109 | GP11F | 78.000 |
| 949630427500 | BRNG PLATE GP11F/11M | GP11F | 3.400 |
| 949630438400 | SEAL RING G1810-SERIES 304384 | GP11F | 0.800 |
| 949630480000 | COVER GP11F/GP11M | GP11F | 4.000 |
| 949640515600 | SEAL RING G1810-SERIES 405156 | GP11F | 6.300 |
| 949640519500 | RING 190/170X7 G10-SERIES 405195 | GP11F | 0.310 |
| 949640521800 | SHIM SHEET 95X110X1 G10-SERIE 405218 | GP11F | 0.010 |
| 949640549700 | O-RING 745X5,7 GP11 405497 | GP11F | 0.060 |
| 949640589000 | MEASURING TOOL 405890 | GP11F | 1.300 |
| 949641080800 | OIL PIPE G10,G14 | GP11F | 0.100 |
| 949641802500 | FLANGE PIPE 418025 | GP11F | 0.220 |
| 949648751700 | DAMPER GP-SERIES 487517 | GP11F | 9.890 |
| 171377/107 | OIL PIPE G10,G14 | GP11F | 0.350 |
| 203943/25 | OIL PIPE G10,G14 | GP11F | 0.030 |
| 285352-A | PROTECTION PLATE GP11F | GP11F | 21.000 |
| 285352-B | PROTECTION PLATE GP11F | GP11F | 21.000 |
| MM0208159 | ECCENTRIC SHAFT GP11F/GP11M | GP11F | 293.500 |
| MM0208999 | CNTRSHFT GP11F/GP11M | GP11F | 47.800 |
| MM0209336 | OIL HOSE 4600 MM | GP11F | 9.200 |
| MM0218088 | DRIVE GEAR PAIR GP11-SERIES 203065+MM020 | GP11F | 108.000 |
| MM0221024 | HYDRAULIC DOUBLE PUMP MHP315B293SFAB17 | -GP11F | 19.500 |
| MM0223946 | KEY SWITCH ZB5-AG2 | GP11F | 0.050 |
| MM0223947 | CONTACT BLOCK ZB5-AZ101 | GP11F | 0.021 |
| MM0223948 | CONTACT BLOCK ZB5-AZ102 | GP11F | 0.021 |
| MM0223950 | EMERGENCY STOP BUTTON ZB5-AS44 | GP11F | 0.040 |
| MM0233744 | SHAFT SEAL 402-2883-151 | GP11F | 0.030 |
| MM0263352 | V-BELT PULLEY SPC 450/8, CENTRIC | GP11F | 75.210 |
| MM0263355 | V-BELT PULLEY SPC 530/8, CENTRIC | GP11F | 96.020 |
| MM0273426 | ECCENTRIC BUSHING E30 GP11F/M | GP11F | 59.270 |
| MM0315148 | FRAME BRNG BUSHING GP11 | GP11F | 79.540 |
| MM0524196 | BRNG PLATE GP11F/GP11M | GP11F | 2.640 |
| N01532903 | BOLT HEX ISO4014-M48X200-10.9-UNPLTD | GP11F | 3.700 |
| N01532904 | BOLT HEX ISO4014-M48X220-10.9-UNPLTD | GP11F | 4.000 |
| N01626325 | PLAIN WASHER ISO7089-48-CK43/CK45 HB304 | GP11F | 0.290 |
| N02125055 | HERMOSTAT AND NIPPLE RT10117-5003+017 | GP11F | 1.000 |
| N02445615 | PRSSR ACCUMULATOR 3066757 SBO330-20A1/1 | GP11F | 50.500 |
| N02495126 | PUSH BUTTON XB4-BP42 | GP11F | 0.010 |
| N02495318 | INDUCTION SW 519-34271-8, 7M | GP11F | 0.100 |
|---|
| N02495325 | TEMP SENSOR MBT5252 084Z8214 | GP11F | 0.420 |
| N02495326 | TEMPERATURE SENSOR MBT5252, 084Z8215 | GP11F | 0.392 |
| N05255789 | FUSE 06.00390 | GP11F | 0.010 |
| N05256023 | CURRENT TRNSFRMR CTD-3X 800 5A XXX | GP11F | 0.600 |
| N05256100 | RESISTOR 120 OHM. 0.25W | GP11F | 0.010 |
| N05256315 | TIME RELAY DMB51CM24 | GP11F | 0.075 |
| N05256377 | PUSH BUTTON XB4-BP31 | GP11F | 0.045 |
| N11449747 | PLUG AMPSEAL 770680-1+770854-3 | GP11F | 0.500 |
| N11449748 | PLUG AMPSEAL 770680-4+770854-3, SPEC N1 | GP11F | 0.001 |
| N11449749 | PLUG AMPSEAL 770680-5+770854-3, SPEC N1 | GP11F | 0.010 |
| N11449750 | PLUG AMPSEAL 776286-1+770854-3 | GP11F | 0.010 |
| N11950666 | MANTLE EF/F | GP11F | 494.700 |
| N86101021 | HYDR PIPE 12X1,5 | GP11F | 0.050 |
