Piezas de desgaste Metso GP300/GP300S

‹

›

‹

  • Piezas de desgaste Metso GP300/GP300S
  • Piezas de desgaste Metso GP300/GP300S
  • Piezas de desgaste Metso GP300/GP300S
  • Piezas de desgaste Metso GP300/GP300S
  • Piezas de desgaste Metso GP300/GP300S

›

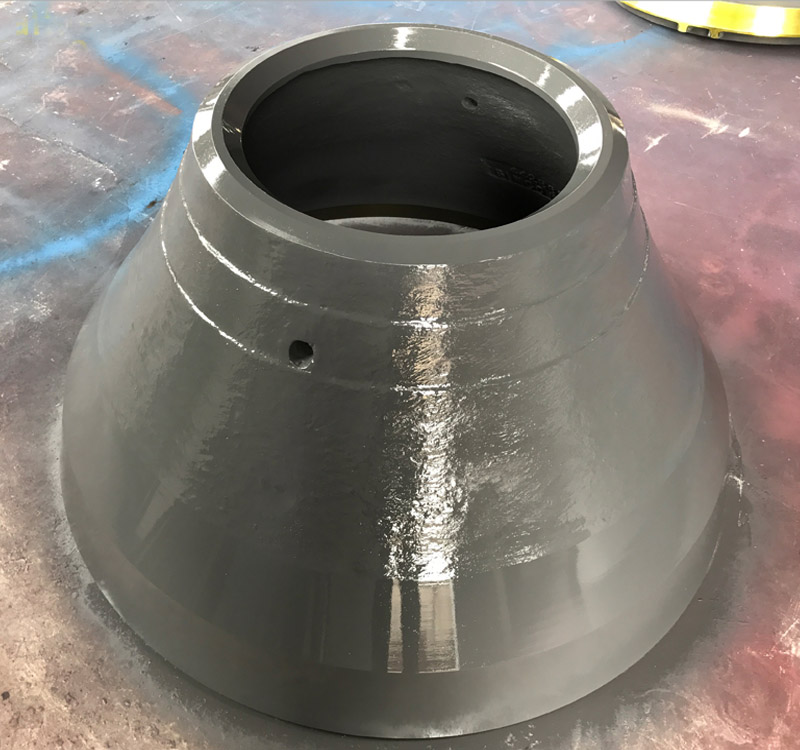

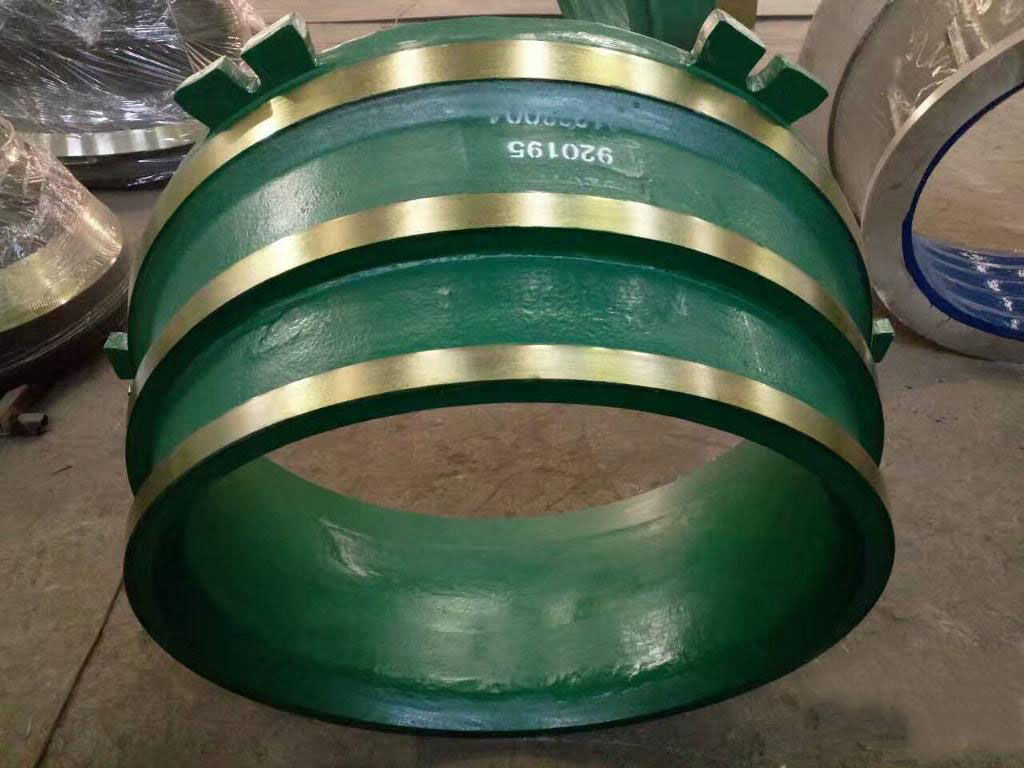

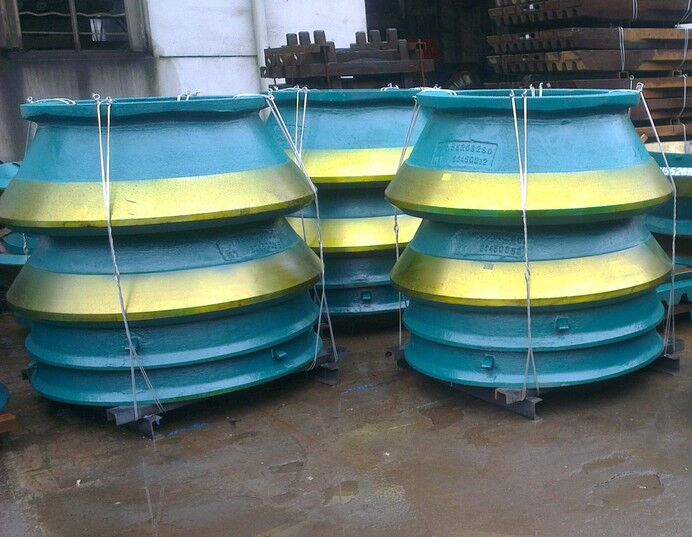

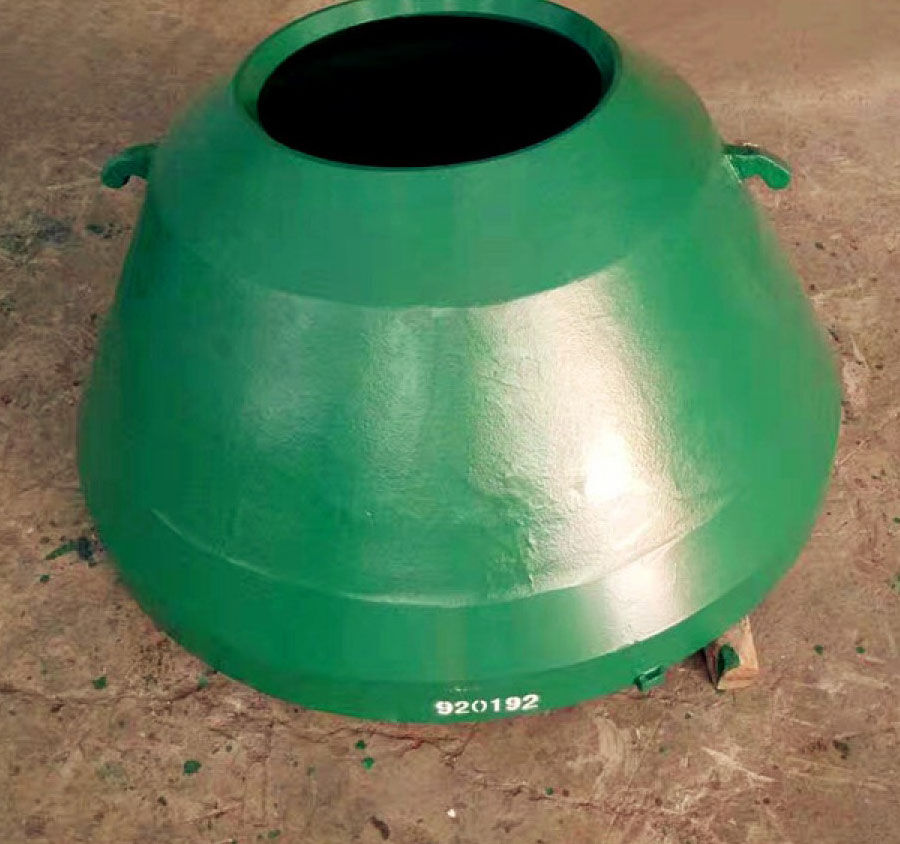

Bowl Liner & Mantle son las piezas principalmente resistentes al desgaste para la trituradora de cono metso GP300/GP300S.WHITE LAI ofrece Metso® Bowl Liner & Mantle, la alternativa perfecta a los accesorios originales de Metso.

WHITE LAI Bowl Liner & Mantle está fabricado con acero con alto contenido de manganeso, por lo tanto, tiene una vida útil entre un 50 y un 100 % mayor que los fabricados con acero tradicional con alto contenido de manganeso. Las técnicas especiales de procesamiento aseguran que nuestro Bowl Liner & Mantle tenga un rendimiento líder:

1) Al utilizar la tecnología de endurecimiento por procesamiento en frío, se mejora la dureza.

2) Tecnología de endurecimiento del agua para evitar que el rendimiento sea deficiente durante el proceso de cambio de fase natural.


Número de parteDescripciónTipo de trituradoraPeso (KG)
188320CASE GP300/GP300SGP300118.530
188322CNTRSHFT GP300/GP300SGP30062.500
189223HEAD GP300GP3001,366.300
189276ECCENTRIC BUSHING G2612 25/32/40/50GP30082.000
292721NUT TR300X12-8H GP300/SGP30054.420
292723BRNG GP300/300SGP30014.960
292817PROTECTION PLATE G12GP30058.700
292826CNTRSHFT ASSY GP300/GP300SGP300205.000
295245MAIN SHAFT GP300GP3001,090.170
295251TOP BRNG G2612 25/32/40/50GP30046.070
340082COVER GP300/300SGP300130.000
341053PROTECTION PLATE G12GP30017.000
341327SLIDE RING G2612GP30064.000
341336PROTECTION BUSHING G2612GP30039.000
446421ANILLO ESPACIADOR GP300 Y GP300S; ST 52-3GP3003.306
446428O-RING GP300/300SGP3000.050
446429O-RING GP300/300SGP3000.070
446430O-RING GP300/300SGP3000.100
446432O-RING GP300/300SGP3000.070
446517O-RING GP300/300SGP3000.020
447394SEAL G2612 ER.447394GP3004.630
447419GUIDE RING G12GP3000.200
487516PLATE LEVYGP3005.150
495365SCREW RMVNG M48X90 G-SERIESGP3002.200
585351LOW FRAME GP300/SGP3004,436.780
585614COVER CASTING GP300GP30059.120
585664COVER GP300 / GP300SGP30067.980
585701COVERGP30045.460
905243FRAME UPR GP300GP3001,997.580
910447SLIP RING GP300GP300218.000
913757PIPE G3310GP3000.300
915114TOOL AND EQUIPMENT G3812, G2612GP30030.200
916188FRAME ASSY UPR GP300GP3002,240.160
916189MAIN SHAFT ASSY GP300GP3002,575.000
925784BUSHINGGP30062.620
925808BRNGGP3002.800
925832SHIM SHEETGP3000.200
930039SCREW RETGP3000.100
931612PISTON GP300/300SGP300344.920
931619ECCENTRIC SHAFTGP300250.000
931714FRAME BUSHING GP300/SGP30073.000
933913SUB-FRAME ASSEMBLY GP300/GP300SGP300690.000
938157O-RING GP300/300SGP3000.050
938379EMPUJE BRNG GP300 Y GP300SGP30062.000
942187CNTRL BOX A2020 DCU GP-STDGP3002.200
7002152765SEAL RINGGP3000.000
7002420046ELBOW ADAPTER GG306-NP20-20, (MALE 1 5/GP3000.500
704003814000SCREW SLOT-HEAD ISO1207-M6X50-5.8-A3AGP3000.011
704103068600PLUG DIN906-M12X1,5-ST ZNPHGP3000.010
705302060300ROLLER BRNG DIN5412-NU2220ECPGP3004.900
705303160308ROLLER BRNG 32220 J2GP3004.900
706201083422PRSSR REL VALVE 0532002012 (35BAR), R9GP3000.300
706202557951TAPERED SLEEVE 4030X95, 029R0095GP3005.600
706300790095CNNCTN 20R6MXSGP3000.710
706300910001PISTON SEAL UN600X550X25 PU 90 SHGP3000.500
706302285600SEAL 270X311,5X18 ER.NRO.900303GP3000.600
814318940300MANTLE FGP300597.580
814390455800CONCAVE FGP300703.850
949618831627DRIVE GEAR PAIR G12 188316+292727GP300157.000
292819-APROTECTION PLATE GP300SGP30040.000
295247-APROTECTION PLATE G12GP30016.000
295247-BPROTECTION PLATE G12GP30016.000
MM0202186MATERIAL DE FUNDICIÓN DE LA CUBIERTA: EN 1563: EN-GJS-GP30034.040
MM0202187MATERIAL DE FUNDICIÓN DE LA CUBIERTA: EN 1563: EN-GJS-GP30034.040
MM0209387V-BELT SPC 2550MMGP3000.000
MM0214322HYDRAULIC PUMP AZPF-10-014RHO30MBGP3005.000
MM0216093SUB-FRAME GP300 / GP300SGP3001,436.800
MM0222708V-BELT PULLEY 450X8 SPC-TL(5050)GP300119.390
MM0224259PLATEGP3008.710
MM0224945COUNTERSHAFT ASSEMBLY GP300/GP300SGP300198.160
MM0226633PLATE WELDING GP-LUB UNITGP3000.820
MM0230333TAPERED SLEEVE 4030X100GP3000.000
MM0242240MANTLE C/ECGP300625.430
MM0242241CONCAVE ECGP300816.450
MM0251206HYDR HOSE 90JF-12/EN857-2SC-12/JF-16/L80GP3001.160
MM0259738MAIN SHAFT GP300GP3001,082.160
MM0259894HEAD GP300GP3001,373.680
MM0262457MAIN SHAFT ASSY GP300 SPARE PART ASSEMBLGP3002,494.980
MM0266967ECCENTRIC BUSHING GP300 25/32/40GP30078.800
MM0267450ECCENTRIC SHAFT GP300GP300252.610
MM0269407BRNG GP300/SGP30018.220
MM0301048MAIN SHAFT ASSY GP300GP3002,587.830
MM0304737LOW FRAME GP300/SGP3004,406.820
MM0358252TRMNL PLUG VSTI1/8EDCFGP3000.010
N02152934HYDRAULIC PUMP P257086KVZA20-32GP30023.500
N02154096OIL COOLER T 1626.065.X009GP30041.000
N02154758BLADE 8400.569.0630GP3003.000
N02445981RETURN FILTER MRH 150 MS1 DB 90 3 XXGP30014.200
N05222814MTR PROTECTIVE CIRCUIT BREAKER GV2-ME07GP3000.260
N05428749SQUIRR CAGE MOTOR K21R 112M4 4KW/1500 BGP30037.000
N11896339MAIN SHAFT ASSY G12 FINE VARAOSAVERSIOGP3001,091.790
N11905094CONCAVE MF/CGP3001,097.750
N11920192MANTLE MF/MGP300753.880
N11920194CONCAVE MF/C LSGP300979.240
N11920195CONCAVE MGP300921.580
N11920196MANTLE C/ECGP300625.430
N11920197CONCAVE ECGP300816.450

GP300S

Número de parteDescripciónPeso
188319BASTIDOR SUPERIOR GP300S1,209.800
188321CABEZAL GP300S1,464.640
188325CASQUILLO EXCENTRICO GP300S 18/25/32/4078.910
292715EJE PRINCIPAL GP300S,G3812,G28121,409.760
292720COJINETE SUPERIOR E18/25/32/4045.770
292818PLACA DE PROTECCIÓN GP300S52.960
315928ANILLO DESLIZANTE G1264.000
315929CASQUILLO DE PROTECCIÓN G381240.370
446209SELLO G12 4462094.490
447414AMORTIGUADOR SERIE GP25.300
905246CHASIS INTERMEDIO GP300S2,172.350
915829CONJUNTO DE MARCO SUPERIOR GP300S3,701.710
915831CONJUNTO DEL EJE PRINCIPAL GP300S2,970.000
931651EJE EXCÉNTRICO250.000
936405EJE PRINCIPAL CONJUNTO GP300S REPUESTO VERSI2,834.920
7001530885TORNILLO HEXAGONAL ISO4014-M42X140-8.8-A3A2.130
7002125787HTR6.000
406303279957POLEA DE CORREA TRAPEZ SPC 560/8 (4535)109.000
704203751000ESPÁRRAGO DIN938-M42X120-8.81.600
705501260473CORREA EN V ISO4184-SPC 31501.200
706201083421VALVULA DE DESCARGA PRSSR 0532002012 (26 BAR), R90.200
814318836900MANTO C/CE964.990
814318862000CÓNCAVO GP300S C 0861-512951.060
814318862100CÓNCAVO SUPERIOR C472.350
814329276100CÓNCAVO GP300S CE 0861-512946.010
814329276200CÓNCAVO SUPERIOR EC415.710
814390336100MANTO EC LS884.000
814390336200CÓNCAVO SPCL EXTEN GP300S EC-LS (G3812-839.000
949640566600TORNILLO M30X380 SERIE G3210 4056662.670
292819-BPLACA DE PROTECCIÓN GP300S40.000
MM0214492CABINA DE CONTROL 250KW,GP300S0.000
MM0216826CASQUILLO 4030X950.000
MM0227940CASQUILLO EXCENTRICO GP300S 28/3679.590
MM0228204TOP BRNG GP300S 28/3646.020
MM0239535EJE EXCENTRICO GP300S EJE EXCENTRICO252.820
MM0262147CAMBIO DE CONTROL GP30067.690
MM0347269MODULO DE CONTROL 41391-454-01-S1FX1.000
