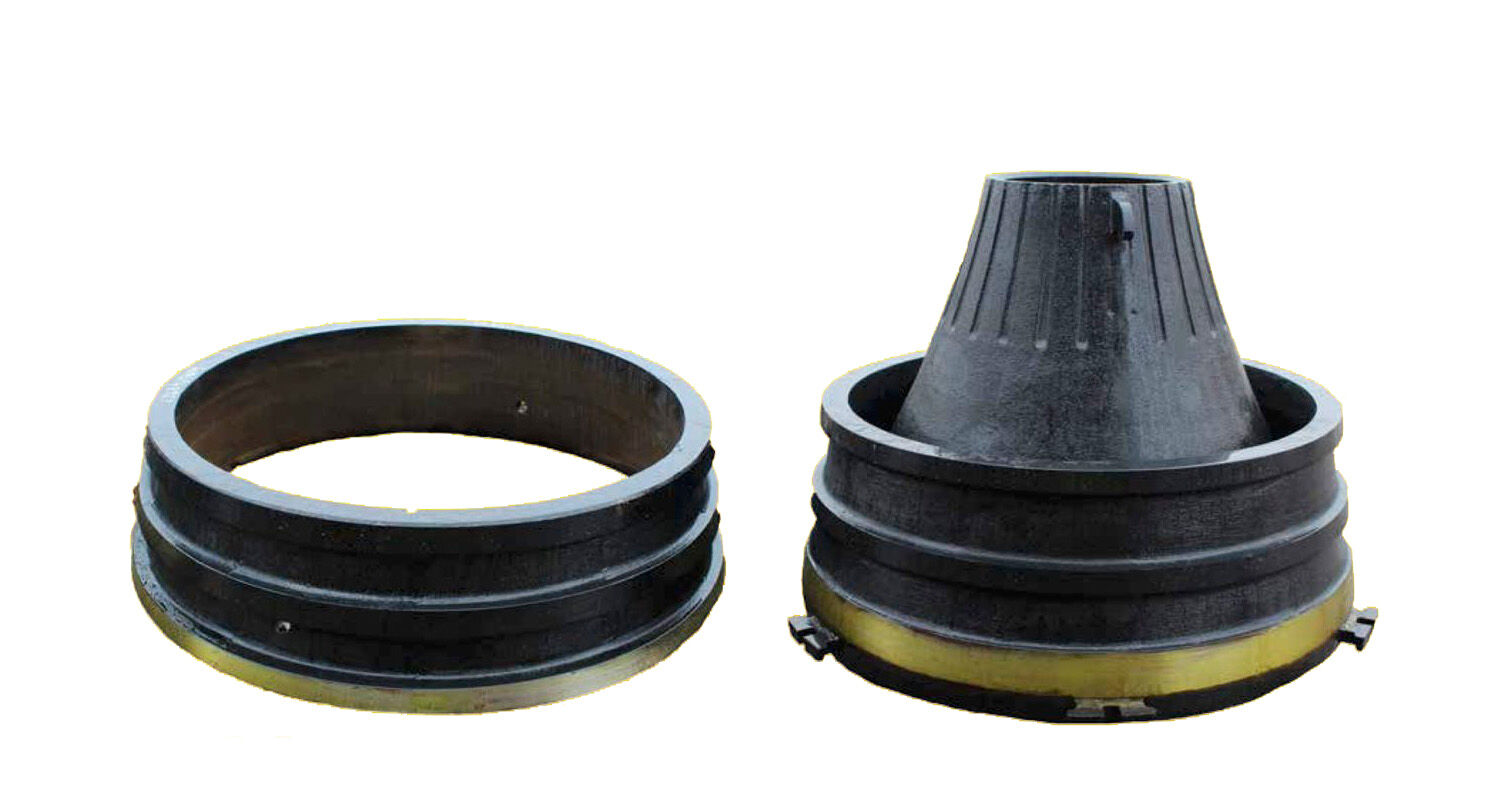

Bowl Liner & Mantle son las piezas principalmente resistentes al desgaste para la trituradora de cono metso GP500/GP500S.WHITE LAI ofrece Metso® Bowl Liner & Mantle, la alternativa perfecta a los accesorios originales de Metso.
WHITE LAI Bowl Liner & Mantle está fabricado con acero con alto contenido de manganeso, por lo tanto, tiene una vida útil entre un 50 y un 100 % mayor que los fabricados con acero tradicional con alto contenido de manganeso. Las técnicas especiales de procesamiento aseguran que nuestro Bowl Liner & Mantle tenga un rendimiento líder:
1) Al utilizar la tecnología de endurecimiento por procesamiento en frío, se mejora la dureza.
2) Tecnología de endurecimiento del agua para evitar que el rendimiento sea deficiente durante el proceso de cambio de fase natural.
| Número de parte | Descripción | Tipo | Peso (KG) |
|---|
| 186066 | CNTRSHFT G15 | GP500 | 104.000 |
|---|
| 285852 | TOP BEARING E25/32/40 G1315 | GP500 | 79.200 |
|---|
| 285869 | THRUST BRNG G1315 | GP500 | 29.000 |
|---|
| 285888 | COVER GP500 | GP500 | 198.000 |
|---|
| 287702 | VALVE ASSY VSD-350 G-15 | GP500 | 10.000 |
|---|
| 287906 | NUT TR360X12-8H VASEN G415-G2215 | GP500 | 110.580 |
|---|
| 292780 | LIFTING TOOL GP500/500S | GP500 | 5.300 |
|---|
| 312707 | PROTECTION BUSHING G1315 | GP500 | 66.700 |
|---|
| 447025 | ANILLO DE ANTORCHA G2215 y G1815 | GP500 | 6.890 |
|---|
| 447672 | SCREW RMVNG M48X110 GP-SERIES | GP500 | 2.450 |
|---|
| 495277 | SEAL RING G1315 495277 | GP500 | 13.000 |
|---|
| 495349 | ANILLO DE ANTORCHA GP500EF-MF Y GP500S | GP500 | 6.400 |
|---|
| 495377 | O-RING 712X5,7-NBR70 VULCANIZED | GP500 | 0.100 |
|---|
| 495378 | O-RING GP500/500S | GP500 | 0.100 |
|---|
| 495379 | O-RING GP500/500S | GP500 | 0.100 |
|---|
| 580006 | ECCENTRIC BRNG E25/32 | GP500 | 144.310 |
|---|
| 582360 | COVER GP550 | GP500 | 311.510 |
|---|
| 582395 | COVER GP550 | GP500 | 125.460 |
|---|
| 582410 | COVER GP550 | GP500 | 40.840 |
|---|
| 582421 | COVER GP550 | GP500 | 112.650 |
|---|
| 585084 | SEAL | GP500 | 0.310 |
|---|
| 585150 | SEAL | GP500 | 0.310 |
|---|
| 585331 | SEAL B5 FLANGE | GP500 | 0.300 |
|---|
| 915050 | BOTTOM PLATE G5015 | GP500 | 0.600 |
|---|
| 916193 | FRAME ASSEMBLY, UPPER G15TERTIARY | GP500 | 3,850.000 |
|---|
| 919737 | SENSOR EDS250-F-CA-I-LOKOMO | GP500 | 1.000 |
|---|
| 922788 | BEARING G15 | GP500 | 2.600 |
|---|
| 939752 | ECCENTRIC SHAFT GP500 | GP500 | 383.000 |
|---|
| 948430 | FRAME BUSHING | GP500 | 88.000 |
|---|
| 7002154658 | COOLER 23KW | GP500 | 0.000 |
|---|
| 7002445751 | FILTER CARTRIDGE FD47M60 | GP500 | 0.840 |
|---|
| 7002495300 | TEMP SENSOR 90 A | GP500 | 0.500 |
|---|
| 7010150000 | CHECK VALVE | GP500 | 0.000 |
|---|
| 703402102220 | O-RING SMS1586-319.30X5.70-NBR70 | GP500 | 0.010 |
|---|
| 704103830000 | CAP SCRW HEXSCKTHD ISO4762-M20X70-8.8-A3 | GP500 | 0.230 |
|---|
| 706300910000 | PISTON SEAL UN680X650X15 PU 90 SH | GP500 | 0.500 |
|---|
| 706302119000 | SHAFT SEAL B2SL 140-170-15 72NBR902 | GP500 | 0.250 |
|---|
| 707200241200 | ELECTROLYT STARTER R200/315A 315KW | GP500 | 278.000 |
|---|
| 814318607800 | MANTLE MF | GP500 | 1,184.420 |
|---|
| 814318921300 | CONCAVE MF | GP500 | 1,587.310 |
|---|
| 949640456006 | SCREW M36X400 G1315 404560-F | GP500 | 3.500 |
| 949640484900 | SEAL RING G2614-SERIES 404849 | GP500 | 0.780 |
| MM0209317 | COUPLING | GP500 | 1.250 |
| MM0308244 | ELECTRICAL CABINET G1000 CONTROL SYSTEM | GP500 | 280.000 |
| N02123604 | VALVULA ANTIRETORNO B192 1"1/2 | GP500 | 0.700 |
| N02154711 | GRD 8402.463.0000 | GP500 | 1.500 |
| N05428744 | SQUIRR CAGE MOTOR 5.5KW-230/400V-50HZ-1 | GP500 | 37.000 |
| N05502369 | FILTER CARTRIDGE 0211 3151 | GP500 | 0.454 |
| N11904716 | MAIN SHAFT ASSY GP500 SPARE PART ASSEMB | GP500 | 4,252.000 |
| N11922661 | MANTLE SPECIAL MF | GP500 | 785.000 |
| N11922662 | MANTLE SPECIAL MF | GP500 | 814.910 |
| N11922731 | CONCAVE PROTECTION G1015-SPECIAL | GP500 | 63.000 |
| N44460462 | HYDR HOSE JF-20/EN853-1SN-20/90JF-20/L60 | GP500 | 1.300 |
| N44460463 | HYDR HOSE 90JF-20/EN853-1SN-20/90JF-20/L | GP500 | 1.400 |
| Número de parte | Descripción | Tipo | Peso (KG) |
|---|
| 189495 | FRAME UPR GP500S | GP500S | 2,710.000 |
|---|
| 189534 | ECCENTRIC BUSHING GP500S E18/E25/E32/E4 | GP500S | 146.730 |
|---|
| 189611 | PLACA DE PROTECCIÓN G5015; XT710 | GP500S | 62.000 |
|---|
| 189612 | PLACA DE PROTECCIÓN G5015 SUPERIOR; XT710 | GP500S | 200.000 |
|---|
| 295460 | TOP BRNG 18/25/32/40 | GP500S | 101.310 |
|---|
| 295497 | NUT TR400X12-8H LEFT HAND GP500S | GP500S | 88.050 |
|---|
| 295624 | PROTECTION PLATE G5015 | GP500S | 112.000 |
|---|
| 341571 | COVER GP500S | GP500S | 409.610 |
|---|
| 341573 | PROTECTION BUSHING G5015 | GP500S | 80.000 |
|---|
| 447572 | SEAL RING G5015 447572 | GP500S | 0.820 |
|---|
| 447582 | SEAL G5015 447582 | GP500S | 9.220 |
|---|
| 581211 | FRAME BUSHING | GP500S | 89.230 |
|---|
| 581710 | LOW FRAME GP500S | GP500S | 7,566.070 |
|---|
| 582536 | SUPPORT HOLDER | GP500S | 0.750 |
|---|
| 909151 | COUNTERSHAFT ASSEMBLY G5015 | GP500S | 330.000 |
|---|
| 916198 | FRAME ASSEMBLY, UPPER G5015 | GP500S | 7,970.000 |
|---|
| 939756 | ECCENTRIC SHAFT | GP500S | 402.000 |
|---|
| 7001530426 | SCREW HEX ISO4017-M20X90-8.8-A3A | GP500S | 0.300 |
|---|
| 7004205209 | VIBRATION DAMPER SAW 300-60° IRH, 81449 | GP500S | 27.000 |
|---|
| 704100027332 | HAMMER SCREW DIN261-M36X160-4.6 ER.4716 | GP500S | 1.600 |
|---|
| 814329548400 | MANTLE GP500S, S1000 | GP500S | 1,950.000 |
|---|
| 814390882100 | CONCAVE GP500S C 0861-512 | GP500S | 1,790.000 |
|---|
| 814390882200 | CONCAVE, UPPER GP500S C 0861-512 | GP500S | 1,425.000 |
|---|
| 949640456004 | SCREW M36X450 404560-D | GP500S | 4.000 |
|---|
| MM0209314 | PIPE 42X3 K=175 | GP500S | 0.410 |
|---|
| MM0211573 | SUB-FRAME ASSEMBLY SUB-FRAME ASSY | GP500S | 0.000 |
|---|
| MM0214477 | CONTROL CABIN 315KW,GP500S | GP500S | 0.000 |
|---|
| MM0239996 | ECCENTRIC SHAFT GP500S ECCENTRIC SHAFT | GP500S | 402.000 |
|---|
| MM0252493 | BLOWER HP-229,3-PH,2-POLE, 230/400V 50H | GP500S | 10.000 |
|---|
| MM0252559 | COMPRESSOR UNIT G-SERIES | GP500S | 45.000 |
|---|
| N01532913 | BOLT HEX ISO4014-M48X240-10.9-UNPLTD | GP500S | 4.300 |
|---|
| N02125015 | THERMOMETER T3B507002 TB63 100G 0-120C | GP500S | 0.150 |
|---|
| N02152939 | HYDR PUMP P257C386KVZA22-32 | GP500S | 24.100 |
|---|
| N05428758 | SQUIRREL CAGE MOTOR K21R 100LX8-4L 0.65/ | GP500S | 30.000 |
|---|
| N11941326 | MANTLE EC | GP500S | 2,131.990 |
|---|
| N11941327 | MANTLE C | GP500S | 2,315.900 |
|---|
| N11941328 | CÓNCAVO GP500S C (&EC) 0861-512 | GP500S | 1,916.280 |
|---|
| N11947962 | CONCAVE UPPER C | GP500S | 1,317.320 |
|---|
| N11947963 | CONCAVE UPPER EC | GP500S | 1,079.020 |
|---|
